Nondestructive Evaluation of Concrete Walls

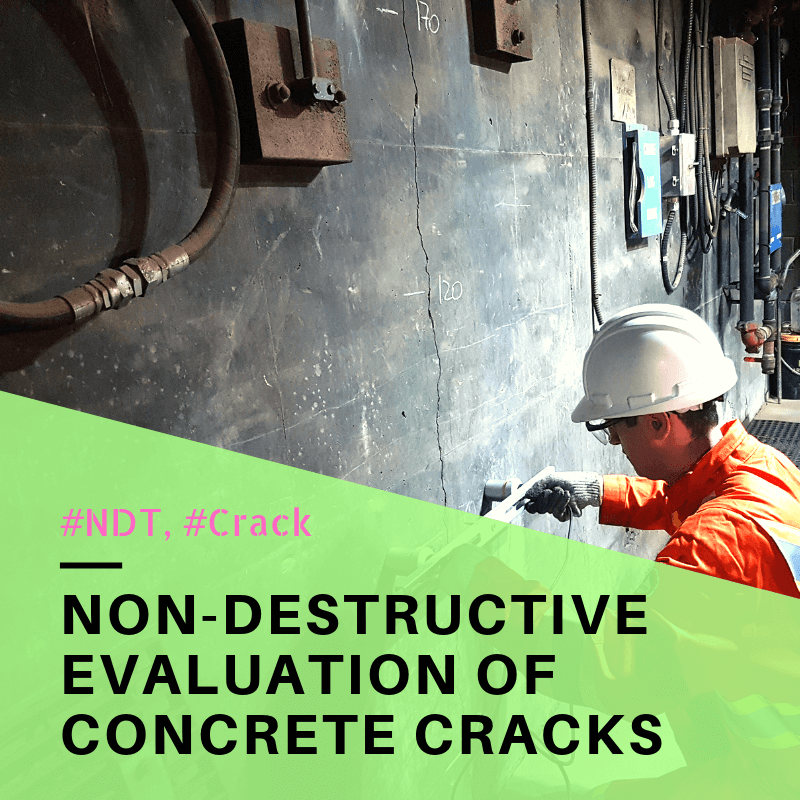

Case Study #3 - NDT of Concrete Walls

Nondestructive Evaluation of Concrete Wall at Coleman Mine | Levack, Ontario | May 2018

FPrimeC Solutions was engaged byKomri Engineeringand Quatro Industries Ltd to conduct nondestructive evaluation of concrete walls supporting the hoist (for transportation to the mine) and other mechanical equipment at Coleman Mine near Levack, Ontario.

The Problem

Cracking was observed on exterior and interior walls. The main objective of the NDT/NDE was to evaluate the existing condition of concrete cracks, crack depth, and identifying potential subsurface defects.

NDT/NDE Inspection

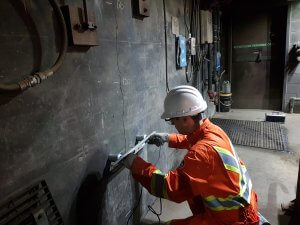

Following a comprehensiveVisual Inspectionto identify visible cracks on concrete surface, FPrimeC conducted crack depth evaluation and concrete quality usingUltrasonic Pulse Velocity (UPV)method, and Rebound Hammer (Schmidt hammer) to evaluate the mechanical stiffness.
