5 NDT Methods for Structural Evaluation

NDT methods can be used in routine inspection projects; they can be used to follow up the state of damages in periodical checks. The other advantage of NDT methods is that they can be performed by minimum intervention to the structure. This helps prevent aggravating the problems in already damaged structure. NDT methods can be used to assess the condition of elements that do not have easy access. One example is the deep foundations or mass concrete structures.

1- Ultrasonic Pulse Velocity

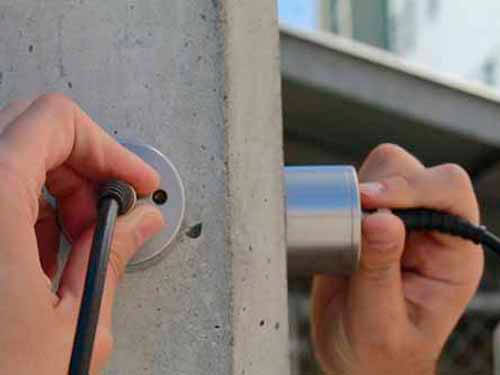

NDT Methods - UPVIt is traditionally approved that there is a direct correlation between the acoustic wave velocity and mechanical properties of concrete when the acoustic waves propagate through a given trajectory in a medium. On other hand, this is proven that the mechanical properties of concrete decline gradually by damage mechanism development. In case of huge and mass concrete elements, the concept behind this method is applied to assess the quality of concrete when is implemented into the seismic tomography.

了解更多Ultrasonic Testing of Concrete

2- Seismic Tomography

NDT Methods - seismic tomography

这是一个发达的mas UPV测试s concrete structures. This method consists of the multi-cross-sectional UPV along given trajectories in order to provide 2-D or 3-D velocity contour maps from internal condition of the mass concrete structures. These velocity values can be correlated to the quality of concrete.

3- Impact-Echo

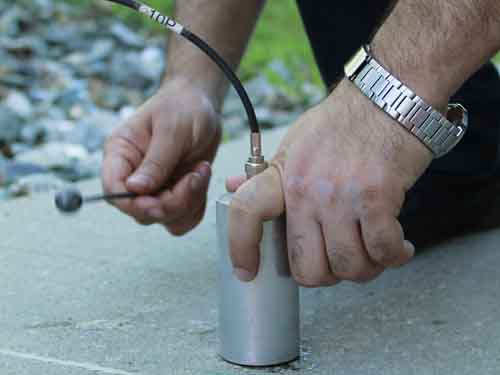

This method can provide a wide knowledge about the position of internal abnormalities such as cavity, honeycombs, delaminated areas, internal cracks. Indeed, a part of emitted acoustic waves by the hammer on the surface is reflected in the boundary of area with different stiffness compared to the main media. Delaminated areas, internal cracks, etc. include smoother areas when compared to the base area. This method is also used to find out about the boundary conditions in the multi-layer media.

4- GPR

The concept behind this technology is that of radar technology in different range of frequencies. This method provides 2-D and 3-D images from the internal parts, embedded objects and their distribution. This can be used to localize the boundary of a multilayer system, delamination, steel rebar, cavities, embedded tubes and cables, etc.

5- Electrical Resistivity of Concrete

The electrical resistivity of concrete can be described as the ability of the concrete to withstand the transfer of ions when subjected to an electrical field. In other words, resistivity is the inverse of conductivity, which can be attributed to the degree of ionic movement in the pores. In this context, resistivity measurement can be used to assess the pore size and extent of the inter-connectivity of pores. These parameters can be directly correlated to the concrete quality, water content of concrete, water absorption, and durability properties of concrete.
